motor constant >1.30 #F/sqrt Watt
force constant >1.65 #F/Amp
velocity constant 7.3 V/M/s
coil resistance 1.61 Ohms typ.
coil inductance 430 uHy
coil mass 50 gms
stator mass 350 gms
travel ± 1.25 mm typ.
max dissipation 6.5 Watts
size 1.5" w x 1.1" h x 3.3 l

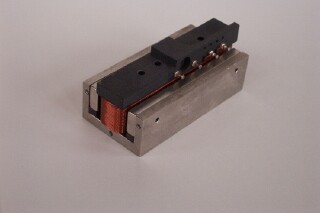

This is a standard motor, if it does not fulfill your needs
we can design a custom motor.
Email or call with your requirements.
